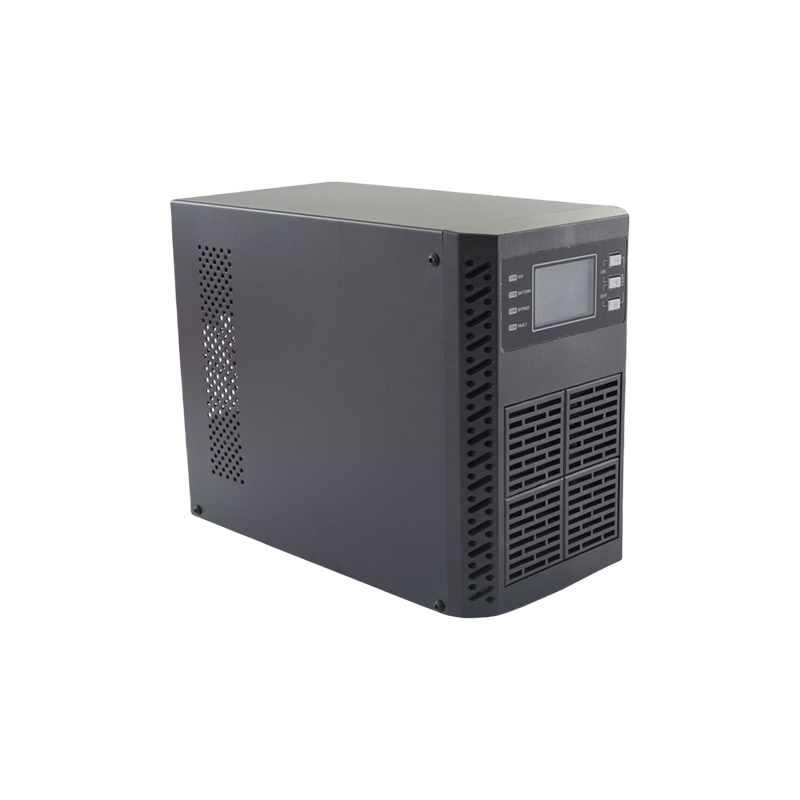

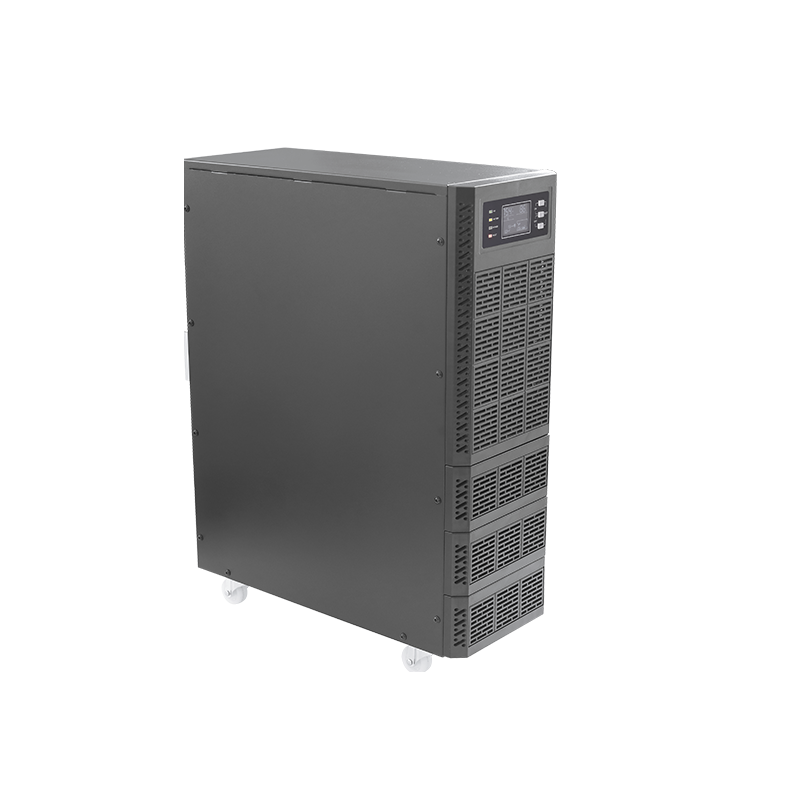

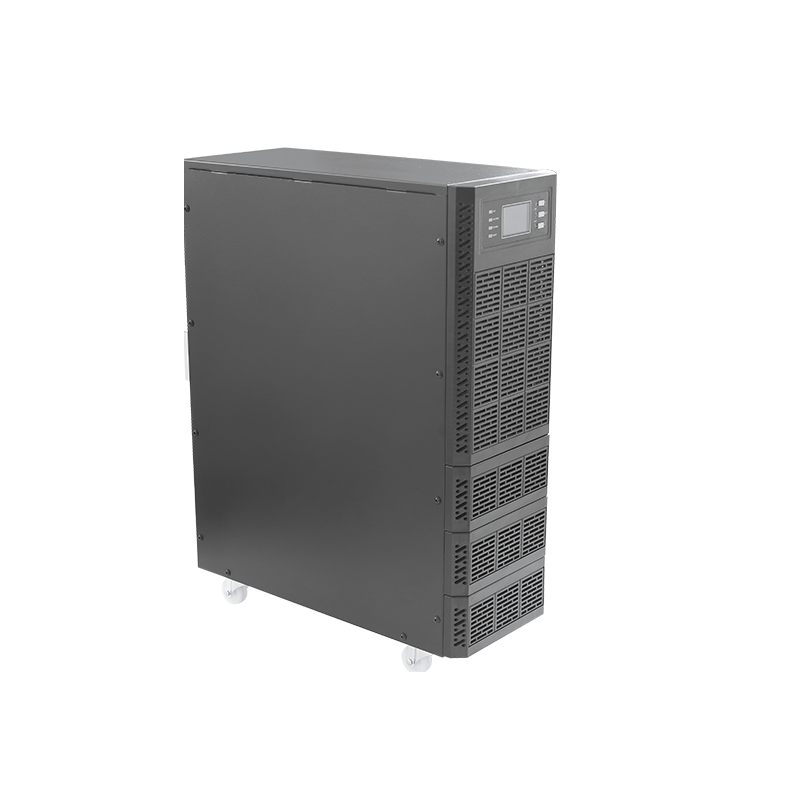

PF1.0 TOWER TYPE ONLINE UPS 6KVA 10KVA
The HH series PF1.0 TOWER TYPE ONLINE UPS 6KVA 10KVA is an online double conversion UPS solution which offers premium power outage protection and continuous power conditioning in a compact and flexible rack/tower form factor.
Send Inquiry
Product Description
1. Product Introduction of PF1.0 TOWER TYPE ONLINE UPS 6KVA 10KVA
PF1.0 TOWER TYPE ONLINE UPS 6KVA 10KVA includes many advanced features such as LCD display, Eco-mode operation, adjustable charger, and much more.
PF1.0 TOWER TYPE ONLINE UPS 6KVA 10KVAis an online double conversion UPS solution which offers premium power outage protection and continuous power conditioning in a compact and flexible rack/tower form factor.
PF1.0 TOWER TYPE ONLINE UPS 6KVA 10KVA operates with high power efficiency, making it ideally suited to protect critical infrastructure in both centralized and edge network applications. Scalable runtime options with matching external battery cabinets offer additional flexibility when extended uninterrupted power is required.
Additionally, PF1.0 TOWER TYPE ONLINE UPS 6KVA 10KVA UPS provides battery health status and replacement date prediction for intelligent battery health management.
With high online efficiency and unity power factor operation, the PF1.0 TOWER TYPE ONLINE UPS EXTERNAL BATTERY 6KVA 10KVA UPS will meet your critical application needs.
Upsystem Power factory is one of the leading PF1.0 TOWER TYPE ONLINE UPS 6KVA 10KVA manufacturers, factories and suppliers. Our product quality has passed international certification, and the price is affordable. Welcome to call us and order our products at a wholesale price.
Get more details of PF1.0 TOWER TYPE ONLINE UPS EXTERNAL BATTERY 6KVA 10KVA from Upsystem Power manufacturer and contact us to get a quotation.
Parameter
| Model | HH6KS | HH6KL | HH10KS | HH10KL |
| Rating | 6kVA/6000W | 10kVA/10000W | ||
| Input | ||||
| Input system | L+N+PE | |||
| Rated voltage | 208/220/230/240VAC | |||
| Voltage range(110v~300v) |
1.110Vac~300Vac, 2. 110Vac~176Vac, 3. 280-300Vac, (power limited) |
|||
| Frequency | 50/60+6HZ (default), ±10HZ (can be set) | |||
| Power factor | 0.99 | |||
| Output | ||||
| Output system | L+N+PE | |||
| Power factor | 1.0 | |||
| Voltage | 208/220/230/240VAC | |||
| Wave Form | Pure Sine Wave | |||
| Voltage harmonic distortion (rated input voltage. Rated input frequency) |
≤3% (0~100% linear load) ≤5% (0~100% non-linear load) |
|||
| Frequency | 50 HZ/60 HZ ±0.05% HZ (Battery Model) | |||
|
Inverter overload capability (in normal mode, 25°C) |
AC mode 30min@102%-110% Load 10min@110%-130% Load 30s@130%~150% Load 200ms@>150% Load Battery Mode: 1min@102%-110% Load 10s@110%-130% Load 3s@130%~150% Load 200ms@>150% Load |
|||
| Transfer time |
AC mode switch to battery mode : 1-10ms mains inverter mode switch to bypass mode : 4ms |
|||
| Battery | ||||
| Battery Voltage | 192Vdc | |||
| Charge Current(1-12A) | 1A(DEFAULT)1-10A settable | |||
| Qty. xVolts.xCapacity | 16x12Vx7Ah(16,20pcs optional) | |||
| Charging duration | 90% of battery capacity in 8 hrs (standard type) | |||
| Interface | ||||
| RS-232 | Support: Windwos 2000/2003/XP/Vista/2008/7/Linux/Unix and MAC | |||
| USB | Windows Famlly & MAC | |||
| Intelligent slot(Optional) | SNMP/AS400 Relay Card/RS485 | |||
| Environmental parameters | ||||
| Operating ambient temperature | 0~40°C | |||
| Operating environment humidity | 20%~95% (No condensation) | |||
| Storage temperature | -15~60°C (Battery :0~40°C) | |||
| Altitude | The altitude should not exceed 1000m, derating above1000m, up to 4000m (max ), refer IEC62040 | |||
| Noise | ≤50db | |||
| Size And Weight | ||||
| Dimensions (D*W*H) (mm) | 460*190*615 | 460*190*615 | 395*144*225 | 395*190*325 |
| Net weight (kg) | 16 | 9.2 | 18.5 | 10 |
2. Product Features of PF1.0 TOWER TYPE ONLINE UPS 6KVA 10KVA
With double conversion online design, zero output transfer time. Single phase input and output voltage.
Adopt DSP digital control, excellent performance indicators, more steady and reliable.
Adopt active power factor correction technology (PFC), the input power factor is 1, can reduce the pollution to the grid, to energy saving and reduce system investment.
Ultra-wide input voltage range.
Input frequency range 45~65Hz, support various fuel generators.
With LCD+ LED real-time display, users can intuitively understand the UPS operating status.
With self-detection function, it can detect hidden faults of UPS in time.
With AC input over voltage, low voltage protection, output overload protection, short circuit protection, temperature protection, battery low voltage warning protection and battery overcharge protection.
When there is no mains power, you can directly use the battery to cold start.
With input neutral and live line detection function, avoid the reverse connection of UPS utility input.
When utility cut-off, the UPS discharges battery in the battery mode; when the city power is recovered, UPS turns on automatically, and charges the battery at the same time, as an unattended function.
Standard RS232 communication outlet, connect UPS and computer to realize multifunctional and multi-purpose monitoring and management operations, available SNMP card (optional) to UPS remote monitoring function.
3. Product Applications of PF1.0 TOWER TYPE ONLINE UPS 6KVA 10KVA
PF1.0 TOWER TYPE ONLINE UPS EXTERNAL BATTERY 6KVA 10KVA which are ideal for Lab Equipment, Networks, Servers, Storage and Industrial equipment.
4. FAQ
1) If OEM is acceptable?
Yes, we can provide the OEM service for Logo printing on UPS, Custom manual etc.
2) How to proceed with an order?
A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.
3) Can I delivery the goods from other supplier to your factory?
Then load together? Sure, that's no problem.
4) Are you a trading company or a manufacturer?
A professional manufacturer and developer of UPS.
5) How is your after-sale service?
We provide 12-24 months warranty period since the delivery date and free maintenance/replacement during warranty period.
6) Do you have any MOQ?
Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.
7) Can I have a sample order?
Yes, we welcome sample order to test and check quality.
8) What kind of material of transformer?
We have two types, one 100% copper and the other is copper with aluminum. It depends on your requirement. In fact, those two have no difference if normal work well. Only except the lifetime. Copper is better and also higher price.
