Product Description

Main Technical Parameters

Table 1 Main Technical Parameters Table

NO:	Item Description	Specification	Notes
1	System Rated Capacity	215kWh
2	Battery Cluster Configuration Method	1P15S
3	Rated Charge/Discharge Power	100kW	Overload capacity：110%
4	DC Voltage Range	672-864V
5	Grid Side Voltage Range	AC400V±10%
6	Inverter Operating Mode	Three-phase three-wire grid- connected operation
7	Operating Mode	Grid-connected operation
8	System Efficiency	≥85%	AC side@25± 2℃ 0.5P
9	Power Factor	-1～1	Adjustable
10	Rated Charge/Discharge	0.5P
11	Storage Temperature Range	-30℃~60℃
12	Permitte（d℃O）perating Temperature Range	Discharge：-20~55℃; Charge：0~55℃
13	Best Operating Temperature Range	25±2℃
14	System Cycle Life	≥6000 次	@25±2℃ , 0.5P,EOL≥80%
15	Relative Humidity	RH ≤95%	No condensation
16	Altitude	≤3000m	>3000m@90% >4000m@8 0%Reduce rated power
17	Protection Grade	IP54

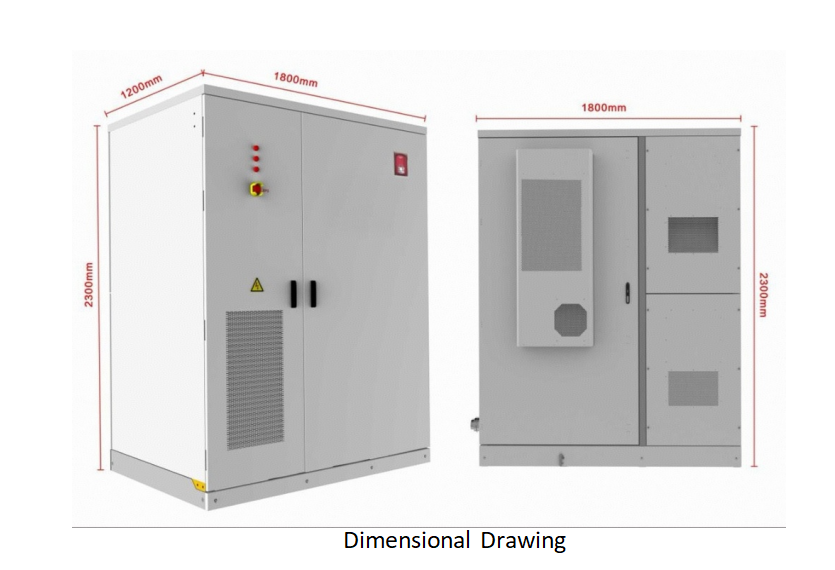

18	Cabinet Dimensions (WHD)	Approx. 210023001200（ mm)
19	Weight	Approx. 2850kg
20	External Communication	Ethernet, wireless 4G
21	Protection Grade	IP54
22	Anti-corrosion Grade	Not less than C3
23	System Design Life	≥10 years
24	External Electrical Interface	AC input: three-phase four wire+PE AC output: three-phase four wire+PE Photovoltaic input: Two channels	Note: Need to connect the N phase from the grid side to the N row in the cabinet to provide AC220V auxiliary power for the cabinet

Product Structure and Equipment List

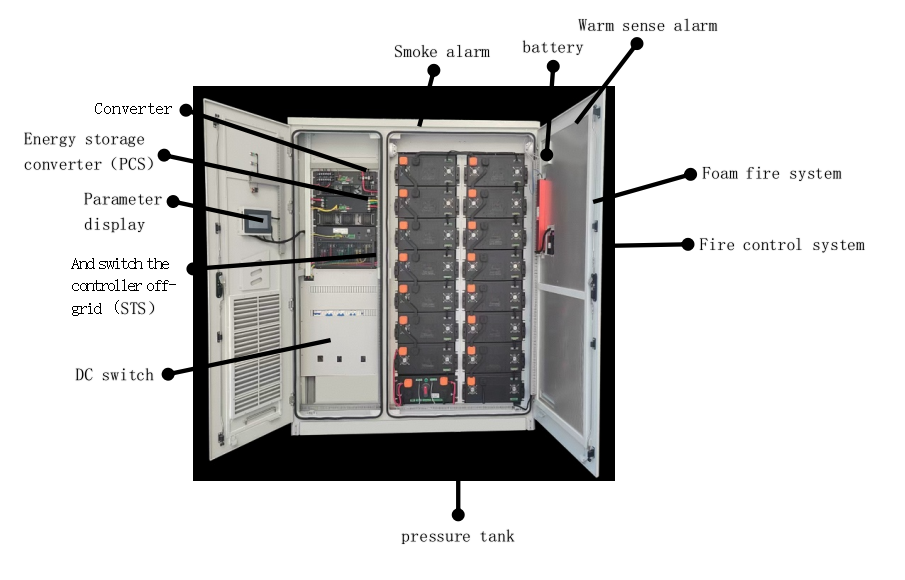

Internal structure picture of the product

List of System Components and Equipment

NO	Designation	Specification and model	unit
1	ESS100-215AF	Integrated light storage cabinet	PCS
2	Battery cluster	1P15S ，768V ，280Ah	PCS
3	MPPT	Secondary architecture	Suite
4	STS	Matched with the power grid	Suite
5	Fire Fighting	Aerosol	Suite
6	PCS	110kV	PCS
7	Cabinet Body	IP54 ，Approx	PCS
8	EMS	210023001200mm	Suite
