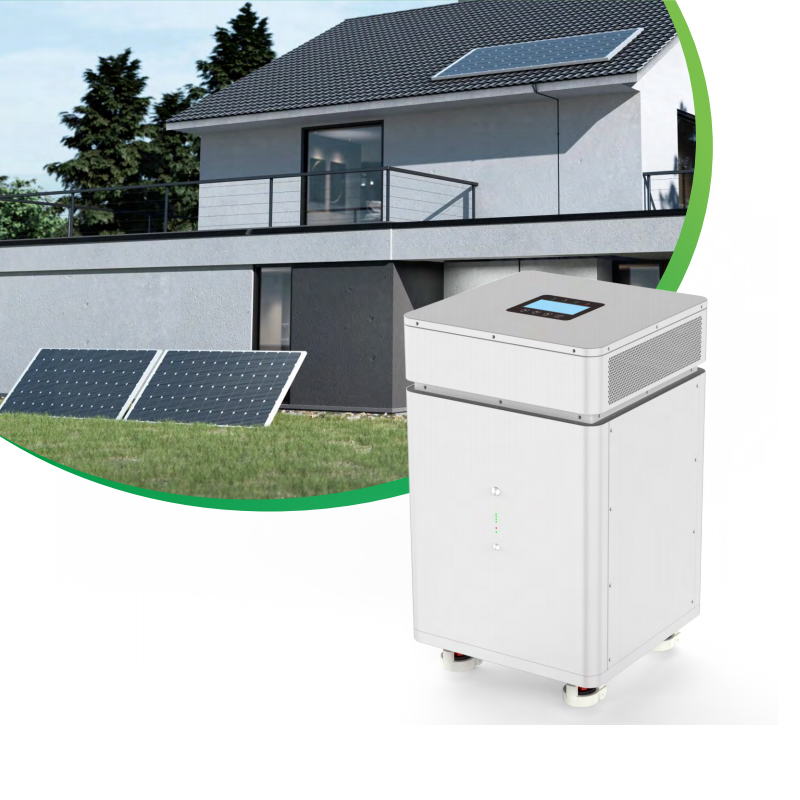

China wholesale All-In-One Inverter Battery System ESS 6KW+16KWH suppliers, manufacturers

Product Description

ESS 6KW+16KWH

Support Lithium/Lead-acid Battery

MAX.PV 9KW

Pure Sine Wave

Built-in Solar Charger

Feed-in to Grid

Lithium Battery Activation

Wide MPPT Range 120-520V

WiFi Monitoring

Specifications Parameter

Model	ESS 6KW+16KWH
AC Input
Rated Input Voltage (VAC)	208/220/230/240; L+N+ PE
Voltage Range (VAC)	90~280+3 (normal mode); 170~280+3 (UPS mode)
Frequency (Hz)	50/60 (Auto Adaptive)
AC Output
Rated Capacity (kW)	6
Surge Power (kVA)	12
Voltage (VAC)	208 /220 / 230 / 240
Power Factor(PF)	1
Frequency	50/60Hz+0.1%
Switch Time (ms)	10
Wave Form	Pure Sine Wave
Overload Capacity (Battery Mode)	60s@102%~110%;10s@110%~130%;3s@130%~150% ;0.2s@>150%;
Max. Efficiency (Battery Mode)	93%@48VDC
Charger (PV/AC)
Solar Charger Type	MPPT
Max PV input current / power	27A / 9000W
Operating Voltage Range (VDC)	80~520
Max PV Open Circuit Voltage (VDC)	500
Max PV Charge Current(A)	120
Max AC Charge Current (A)	120
Max.Charge Current(PV+AC)(A)	120
Battery
Nominal Battery Voltage	51.2VDC
Rated Energy	16KWh(0.5C,25°C)
Usable Energy(90%DOD)	14.4KWh
Max.Charge/Discharge Current	150A/150A
Operation Voltage Range	40.5Vdc~54.5Vdc
Operation Temperature	-10°C~+50°C
Interface
reveal	LCD
communication	USB
Monitoring	WiFi
General Data
Ingress Protection	IP20
Operating Temperature	-10 °C~50°
Relative Humidity	5% ~ 95% (Non-condensing)
Storage Temperature	-15 °C~ 60°C
Max.Operating Altitude	4000m (Derating above 1000m)
DIMENSION
LxWxH (products size, mm)	430481736mm
LxWxH(package size,mm)	540510895mm
Weight(NW Kg)	136kg
Weight(GW Kg)	159kg
