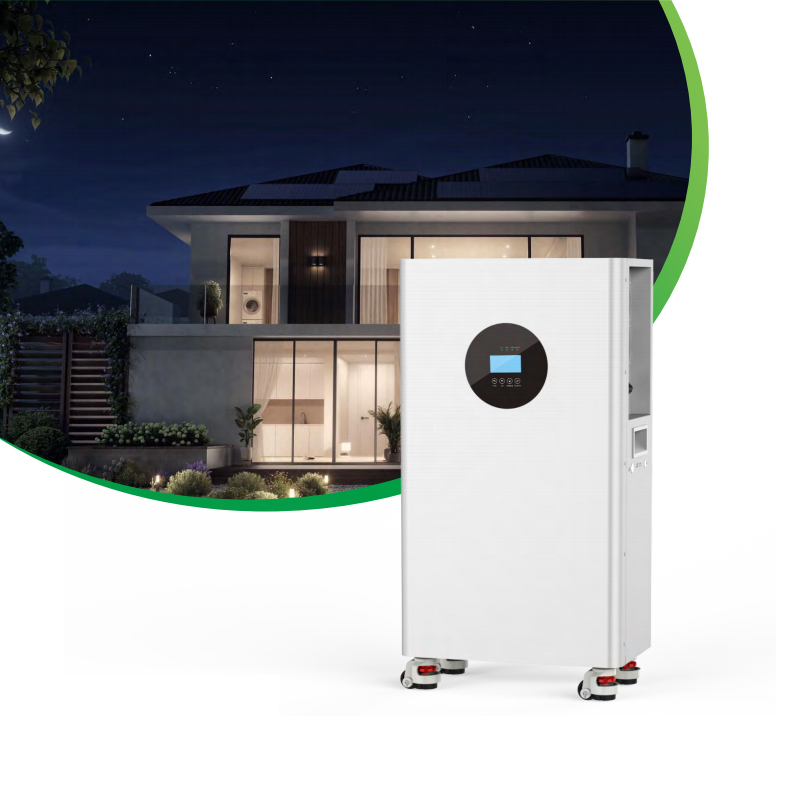

All-In-One Inverter Battery System ESS3.6KW+8KWH

Support Lithium/Lead-acid Battery

MAX.PV 5KW

Pure Sine Wave

Built-in Solar Charger

Feed-in to Grid

Lithium Battery Activation

Wide MPPT Range 40-450V

WiFi Monitoring

Product Description

Support Lithium/Lead-acid Battery

MAX.PV 5KW

Pure Sine Wave

Built-in Solar Charger

Feed-in to Grid

Lithium Battery Activation

Wide MPPT Range 40-450V

WiFi Monitoring

Specifications Parameter

Model	ESS 3.6KW+8KWH
AC Input
Rated Input Voltage (VAC)	208/220/230/240; L+N+ PE
Voltage Range (VAC)	90~280+3 (normal mode); 170~280+3 (UPS mode)
Frequency (Hz)	50/60 (Auto Adaptive)
AC Output
Rated Capacity (kW)	3.6
Surge Power (kVA)	5.7
Voltage (VAC)	208 /220 / 230 / 240
Power Factor(PF)	1
Frequency	50/60Hz+0.1%
Switch Time (ms)	10
Wave Form	Pure Sine Wave
Overload Capacity (Battery Mode)	60s@102%~110%;10s@110%~130%;3s@130%~150% ;0.2s@>150%;
Max. Efficiency (Battery Mode)	92.7%@24VDC
Charger (PV/AC)
Solar Charger Type	MPPT
Max PV input current / power	18A / 5000W
Operating Voltage Range (VDC)	40~450
Max PV Open Circuit Voltage (VDC)	500
Max PV Charge Current(A)	100
Max AC Charge Current (A)	100
Max.Charge Current(PV+AC)(A)	100
Battery
Nominal Battery Voltage	25.6VDC
Rated Energy	8KWh(0.2C,25°C)
Usable Energy(90%DOD)	7.2KWh
Max.Charge/Discharge Current	75A/150A
Operation Voltage Range	20Vdc~29.2Vdc
Operation Temperature	-10°C~+50°C
Interface
reveal	LCD
communication	USB
Monitoring	WiFi
General Data
Ingress Protection	IP20
Operating Temperature	-10 °C~50°
Relative Humidity	5% ~ 95% (Non-condensing)
Storage Temperature	-15 °C~ 60°C
Max.Operating Altitude	4000m (Derating above 1000m)
DIMENSION
LxWxH (products size, mm)	440246760mm
LxWxH(package size,mm)	520436890mm
Weight(NWKg)	73kg
Weight(GW Kg)	86kg
