Products

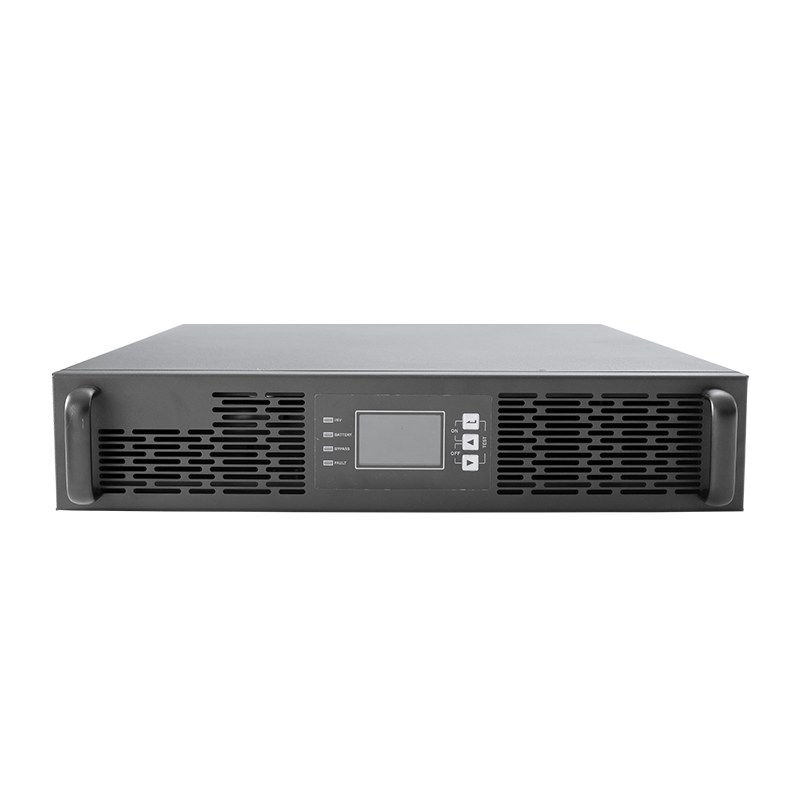

PF1.0 RACK MOUNT ONLINE UPS 6KVA, 10KVA
The HHR series (PF1.0 RACK MOUNT ONLINE UPS 6KVA, 10KVA) is based on rack-mount UPS combined. It is ideal for data centers, IT devices and telecommunication, etc. Compared with lead acid battery, it has many advantages, such as longer cycling lifetime, smaller size, better environmental protection and high reliability.
Send Inquiry
Product Description
1. Product Introduction of PF1.0 RACK MOUNT ONLINE UPS 6KVA, 10KVA
The HHR series (PF1.0 RACK MOUNT ONLINE UPS 6KVA, 10KVA) is based on rack-mount UPS combined. It is ideal for data centers, IT devices and telecommunication, etc. Compared with lead acid battery, it has many advantages, such as longer cycling lifetime, smaller size, better environmental protection and high reliability.
Parameter
| Model | HHR6KS | HHR6KL | HHR10KS | HHR6KL |
| Rating | 6kVA/6000W | 10kVA/10000W | ||
| Input | ||||
| Input system | L+N+PE | |||
| Rated voltage | 208/220/230/240VAC | |||
| Voltage range |
1.110Vac~300Vac, 2. 110Vac~176Vac, 3. 280-300Vac, (power limited) |
|||
| Frequency | 50/60+6HZ (default), ±10HZ (can be set) | |||
| Power factor | 0.99 | |||
| Output | ||||
| Output system | L+N+PE | |||
| Power factor | 1.0 | |||
| Voltage | 208/220/230/240VAC | |||
| Wave Form | Pure Sine Wave | |||
| Voltage harmonic distortion (rated input voltage. Rated input frequency) |
≤3% (0~100% linear load) ≤5% (0~100% non-linear load) |
|||
| Frequency | 50 HZ/60 HZ ±0.05% HZ (Battery Model) | |||
|
Inverter overload capability (in normal mode, 25°C) |
AC mode 30min@102%-110% Load 10min@110%-130% Load 30s@130%~150% Load 200ms@>150% Load Battery Mode: 1min@102%-110% Load 10s@110%-130% Load 3s@130%~150% Load 200ms@>150% Load |
|||
| Transfer time |
AC mode switch to battery mode : 0ms mains inverter mode switch to bypass mode : 4ms |
|||
| Battery | ||||
| Battery Voltage | 192Vdc | |||
| Charge Current | 1A(Default)1-10A settable | |||
| Qty. xVolts.xCapacity | 16x12Vx7Ah | |||
| Charging duration | 90% of battery capacity in 8 hrs (standard type) | |||
| Interface | ||||
| RS-232 | Support: Windwos 2000/2003/XP/Vista/2008/7/Linux/Unix and MAC | |||
| USB | Windows Famlly & MAC | |||
| Intelligent slot(Optional) | SNMP/AS400 Relay Card/RS485 | |||
| Environmental parameters | ||||
| Operating ambient temperature | 0~40°C | |||
| Operating environment humidity | 20%~95% (No condensation) | |||
| Storage temperature | -15~60°C (Battery :0~40°C) | |||
| Altitude | The altitude should not exceed 1000m, derating above1000m, up to 4000m (max ), refer IEC62040 | |||
| Noise | ≤50db | |||
| Size And Weight | ||||
| Dimensions (D*W*H) (mm) | 490x438x88(2U) | |||
| Net weight (kg) |
9.5 Standard Battery cabinet with 16pcs battery is 47.7 |
10.25 Standard Battery cabinet with 16pcs battery is 47.7 |
||
2. Product Features of PF1.0 RACK MOUNT ONLINE UPS 6KVA, 10KVA
1. Full digital control technology
2. Output power factor up to 1.0
3. LCD display panel
4. RS232 communication port
5. Intelligent SNMP+USB+EPO+dry contact (optional)
6. High power density design
7. Online double conversion
8. External battery pack, rack kits (optional)
9. ECO function
3. Product Applications of PF1.0 RACK MOUNT ONLINE UPS 6KVA, 10KVA
PF1.0 RACK MOUNT ONLINE UPS 6KVA, 10KVA is suitable for Data center, Network device, Commercial facility, Precision instrument, Rack device, Telecom system.
4. FAQ
1) If OEM is acceptable?
Yes, we can provide the OEM service for Logo printing on UPS, Custom manual etc.
2) How to proceed with an order?
A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.
3) Can I delivery the goods from other supplier to your factory?
Then load together? Sure, that's no problem.
4) Are you a trading company or a manufacturer?
A professional manufacturer and developer of UPS.
5) How is your after-sale service?
We provide 12-24 months warranty period since the delivery date and free maintenance/replacement during warranty period.
6) Do you have any MOQ?
Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.
7) Can I have a sample order?
Yes, we welcome sample order to test and check quality.
8) What kind of material of transformer?
We have two types, one 100% copper and the other is copper with aluminum. It depends on your requirement. In fact, those two have no difference if normal work well. Only except the lifetime. Copper is better and also higher price.
