Products

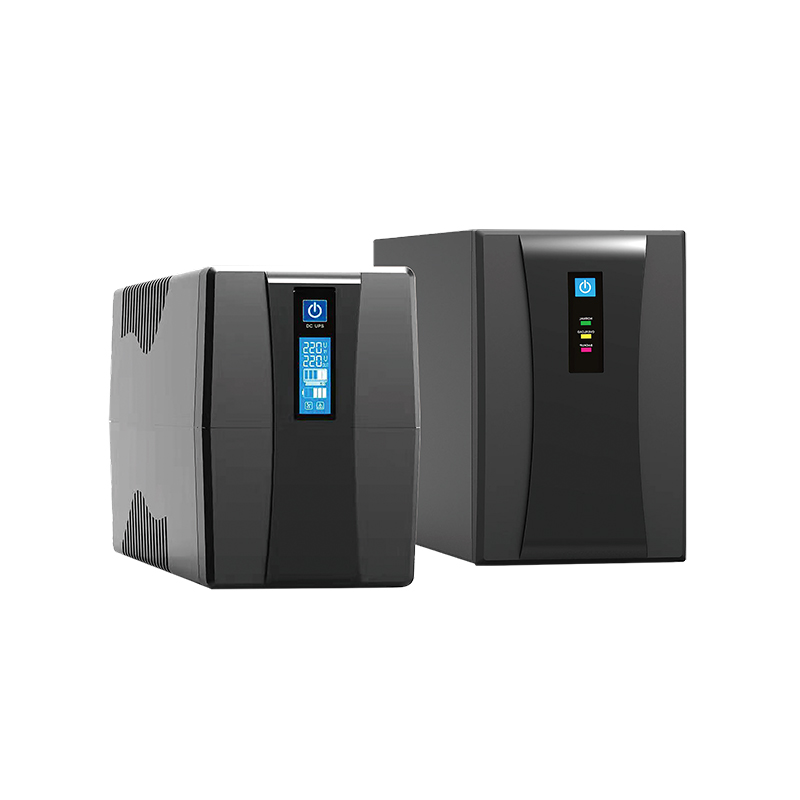

A Series 600VA-3000VA 1-1 Phase
A series UPS ranges from 600VA to 3000VA. With wide voltage input and complete multi-protection safeguards and optional communication ports for remote monitoring. It delivering stable backup power for home and office equipment.
Send Inquiry
Product Description
A series UPS ranges from 600VA to 3000VA. With wide voltage input and complete multi-protection safeguards and optional communication ports for remote monitoring. It delivering stable backup power for home and office equipment.

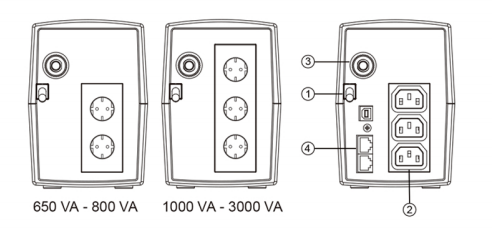

① Input power cord (Optional C19)
② Output outlets (Optional C13)
③ Input fuse / circuit breaker (Optional)
④ USB / RS232 - RJ11 / RJ45 (Optional)
Feature:
CPU controlled
Auto re-starts when AC recovers
Silence setup
Automatic charging(offline charging)
Battery low voltage protection
Overload short circuit protection
Wide input voltage range
Parameters
| Model | A650 | A800 | A1000 | A1200 | A1500 | A2000 | A3000 |
| Rating | 650VA/360W | 800VA/480W | 1000VA/500W | 1000VA/600W | 1500VA/900W | 2000VA/1200W | 3000VA/1800W |
| Input | |||||||
| Input system | 110V/120 VAC or 220/230/240 VAC | ||||||
| Rated voltage | 81-145VAC or 145-275VAC | ||||||
| Frequency | 60/50 Hz (Auto sensing) | ||||||
| Output | |||||||
| Output system | 110/120 VAC or 220/230/240 VAC | ||||||
| Power factor | 0.6 | ||||||
| Voltage | ±10% | ||||||
| Wave Form | Simulated sine wave | ||||||
| Transfer time | 4-6ms | ||||||
| Frequency | 60/50±1Hz | ||||||
| Battery | |||||||
| Qty. ×Volts.×Capacity | 12V/7AH*1 | 12V/9AH*1 | 12V/9AH*1 | 12V/7AH*2 | 12V/9AH*2 | 12V/9AH*2 | 12V/9AH*4 |
| Charge time | 8 hours recover to 90% capacity | ||||||
| Interface | |||||||
| RS-232 | Support windows XP/Vista, Windows 7/8, Linux, Unix, and MAC | ||||||
| Optional SNMP | Power management from SNMP management and web browser | ||||||
| Environmental parameters | |||||||
| Humidity | 20%-95% (No Condensation) | ||||||
| Noise | <55db | ||||||
| Size And Weight | |||||||
| Dimensions (D*W*H) (mm) | 284*95*140 | 345*146*162 | 480*226*320 | ||||
| Net weight (kg) | 3.9 | 4.3 | 4.3 | 10.5 | 11 | 18 | |
